Useful for STEM education, academia, and industry, this app uses device sensor inputs to collect, record, and export data in comma separated value (csv) format through a shareable .csv file.
View This On Google Play
Physics Toolbox Sensor Suite Pro
Data can be plotted against elapsed time on a graph or displayed digitally. Users can export the data for further analysis in a spreadsheet or plotting tool. This app also generates tones, colors, and a stroboscope.
This app includes all capabilities of Physics Toolbox Sensor Suite plus the following additional features:
– Audio Analysis (Oscillocope functions, Spectrum Analyzer)
– Data Alert
– File loading after recording
– Moving Average data filter

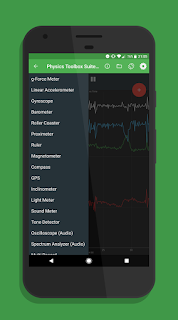

A menu allows the user to sense or generate the following (dependent upon the user’s mobile device capabilities):
(1) G-Force Meter – ratio of Fn/Fg (x, y, z and/or total); automatic calibration to (0, 0, 1); moving average
(2) Linear Accelerometer – acceleration (x, y, and/or z); automatic calibration to (0, 0, 0); moving average
(3) Gyroscope – radial velocity (x, y, and/or z); automatic calibration to (0, 0, 0); moving average
(4) Barometer – atmospheric pressure; manual calibration by selecting offset values ; moving average
(5) Roller Coaster – G-Force Meter, Linear Accelerometer, Gyroscope, and Barometer
(6) Hygrometer – relative humidity
(7) Thermometer – temperature
(8) Proximeter – periodic motion and timer (timer and pendulum modes)
(9) Ruler – distance between two points
(10) Magnetometer – magnetic field intensity (x, y, z and/or total); automatic calibration to (0, 0, 0) ; manual entry for alert setting; moving average
(11) Compass – magnetic field direction and bubble level
(12) GPS – latitude, longitude, altitude, speed, direction, number of satellites
(13) Inclinometer – azimuth, roll, pitch

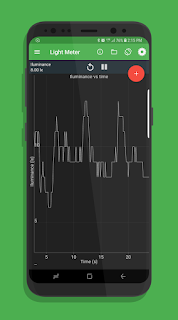

(14) Light Meter – light intensity manual calibration by selecting offset values ; moving average
(15) Sound Meter – sound intensity; manual calibration by selecting offset values ; moving average
(16) Tone Detector – frequency and musical tone
(17) Oscilloscope (Audio) – wave shape and relative amplitude; multi-shot function ; pause function ; time-base selection
(18) Spectrum Analyzer (Audio) – Fast Fourier Transform with histogram and maximum frequency; pause function
(19) Multi Record
(20) Tone Generator – sound frequency producer
(21) Color Generator – R/G/B/Y/C/M, white, and custom color screen
(22) Stroboscope (beta) – camera flash
In multi record, users choose one or more of the above sensors to collect data at the same time. Files can be easily named before export, or saved to the device’s internal for easy organization and retrieval later on.
Additional features include the ability to record simple data with clock time or elapsed time, select either the comma or semicolon as the csv delimiter, retrieve and re-display saved files , capture screenshots of recorded and re-displayed simple data files , change line width on graphs, modify the relative sensor collection rate, and maintain the screen on at all times.
Used to calculate the azimuth.
A csv file is created and modified on the phone’s internal memory.
The app has a sound meter mode that analyzes sound using the microphone.
Requires Android : 4.1 and up
What’s New (Updated – August 14, 2017)
Fixed a navigation problem when pressing the back key while on sensor info (i).
Fixed a bug that prevented the Sound Meter calibration offset to be properly displayed on the graph.
This app has no advertisements
Download Size : 2.96 MB(APK)
